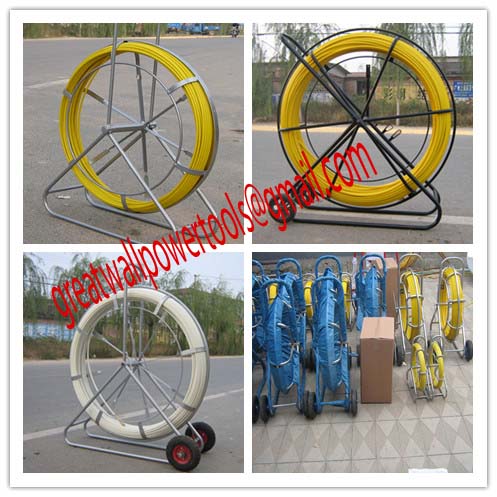

Fish tape Duct rodding low price fiberglass duct rodder

Place of Origin:

Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

fiberglass duct rodde,rduct rod,frp duct rodder,duct rodder
Fiberglass duct rodder features&benefits:
1. strong non-conductive fiberglass rod constr

fiberglass duct rodde,rduct rod,frp duct rodder,duct rodder

Fiberglass duct rodder features&benefits:

1. strong non-conductive fiberglass rod construction

2. fiberglass duct rodderstainless steel drawing head

3. Afor longer conduit runs and underground duct.duct rodder

4. duct rodRugged tubular steel reel with adjustable position.

5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod.

6. Duct rods/duct rodders have Many applications, frp duct roddernot only pulling the cable but also pulling

Glass fiber rod diameter(mm)	φ4.5mm/φ6mm/φ8mm/φ9mm/φ10mm/φ11mm/φ12mm/φ13mm/φ14mm/φ16mm
Length(m)	10m-150m
Color	Yellow/red/black/blue/green/white
Frame(mm)	650 x 250 x 680, 1000 x 470 x 1140, 1230 x 470 x 1350
Material	75-80% E-glass fiber +High density polyethylene(outer)
Feature	Add metal(copper wire, stainless steel wire)in the rod for detectable purpose
Packing	Wrapped and then carton box

1.Fiberglass duct rodderSuitable for tube optical cable installation in power communication industry .

2.Component :fiberglass duct rodder is composed of rodder and small wheel .

There are nylon guide tip and nylon shackle for fiberglass duct rodder with terminal end threaded 12mm .The standard length of roller guide tip is100m.

3.Feature:duct rodder adopt FRP molding core material .the external cover with special engineering plastics.Smooth and high-strength .
